Industrial Laser MegaCenter | CleanTech MegaCenter IR-5010

CTIR-5010

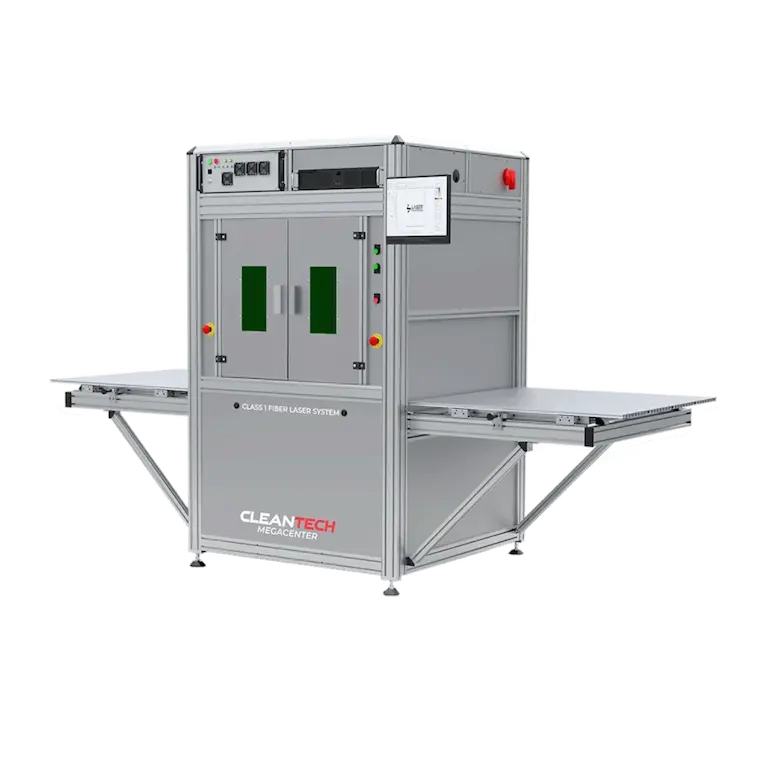

CleanTech MegaCenter Variable 5010

The CleanTech MegaCenter Variable 5010 is a versatile, industrial laser system for semi-automatic cleaning and surface conditioning. Featuring a work area of up to 9 square feet and automatable sliding doors, this system can seamlessly integrate into a production line or function as a standalone unit. Its enclosed design enhances safety by preventing exposure to fumes released during the vaporization of toxic substances, and its exhaust allows for the easy installation of a fume extractor.

Safe

Safe

Dual Axis

Dual Axis

Semi Automatic

Semi Automatic

Other than a power source, the CleanTech MegaCenter requires no consumables and no routine part replacements, delivering long-term consistency and reliability. Operators can select from built-in laser ablation patterns or develop a custom pattern for any unique needs. The CleanTech MegaCenter is a Class I system according to laser safety standards, designed and tested with safety in mind.

Industries Embracing Laser Cleaning

Aerospace

Aerospace

  • Degreasing
  • Decontamination
  • Pre-Adhesion Treatment
Maritime

Maritime

  • Pre-Welding
  • Preparation For Coating
  • Ship Maintenance
Battery Manufacturing

Battery Manufacturing

  • Battery Cleaning
  • Battery Welding
  • Titanium Oxide Removal
Automotive

Automotive

  • Paint removal, and surface preparation
  • Marking on all automobile parts
  • Coating removal on windshields

Applications for CTIR-5010

Roughening Surface Preparation
Post-Weld Treatment Injection Mold Cleaning
Surface Conditioning Coating Removal
Degreasing Oxide Removal
Texturing Pre-Adhesion Treatment
Decontamination Rust and Corrosion Removal
Finishing Pre-Weld Preparation
Corrosion Removal Anodization Removal

Materials that the CTIR-5010 can be used with

Aluminum CFRP
Steel Silicon
Copper Plastics
Brass Thermoplastics
Titanium Composites
Nickel Concrete
Chrome Ceramics
Cast Iron Marble
Carbide & More

Technical Specifications for CTIR-5010

ModelCleanTech MegaCenter 5010
Strip Rate Per HourUp to 320 ft²
Laser TypeFiber
ScannerDual Axis
Operation ModeCW | Modulated | Pulsed
Wavelength1064 nm
Work Area26 x 28 in (660 x 711 mm) | 36 x 36 in (914 x 914 mm)
Size W x H x D 62 x 80 x 58 in (1566 x 2036 x
Unit Weight375 lbs
Temperature64 – 104 °F (18 – 40 °C)
Humidity10 – 80 % Non-Condensing
Operational Voltage120V | 8A
CoolingAir | Water
Safety ClassI
Safety FeaturesEmergency Stop Button | Key Control | Remote Interlock Connection | Emission Indicator | Air Pressure Sensor | Overheat Protection
Mobile ConnectivityYes
